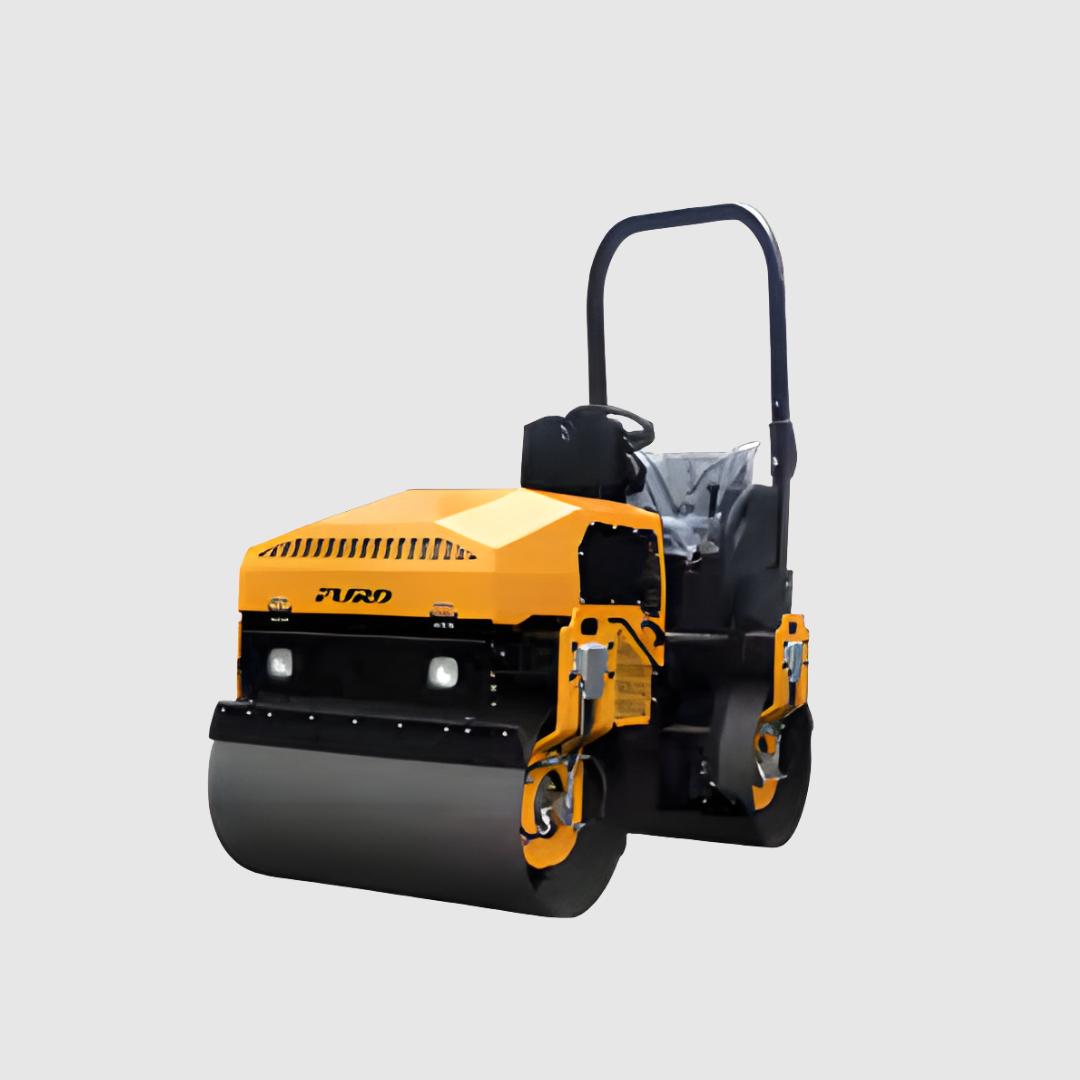

RIDE-ON VIBRATORY ROLLER

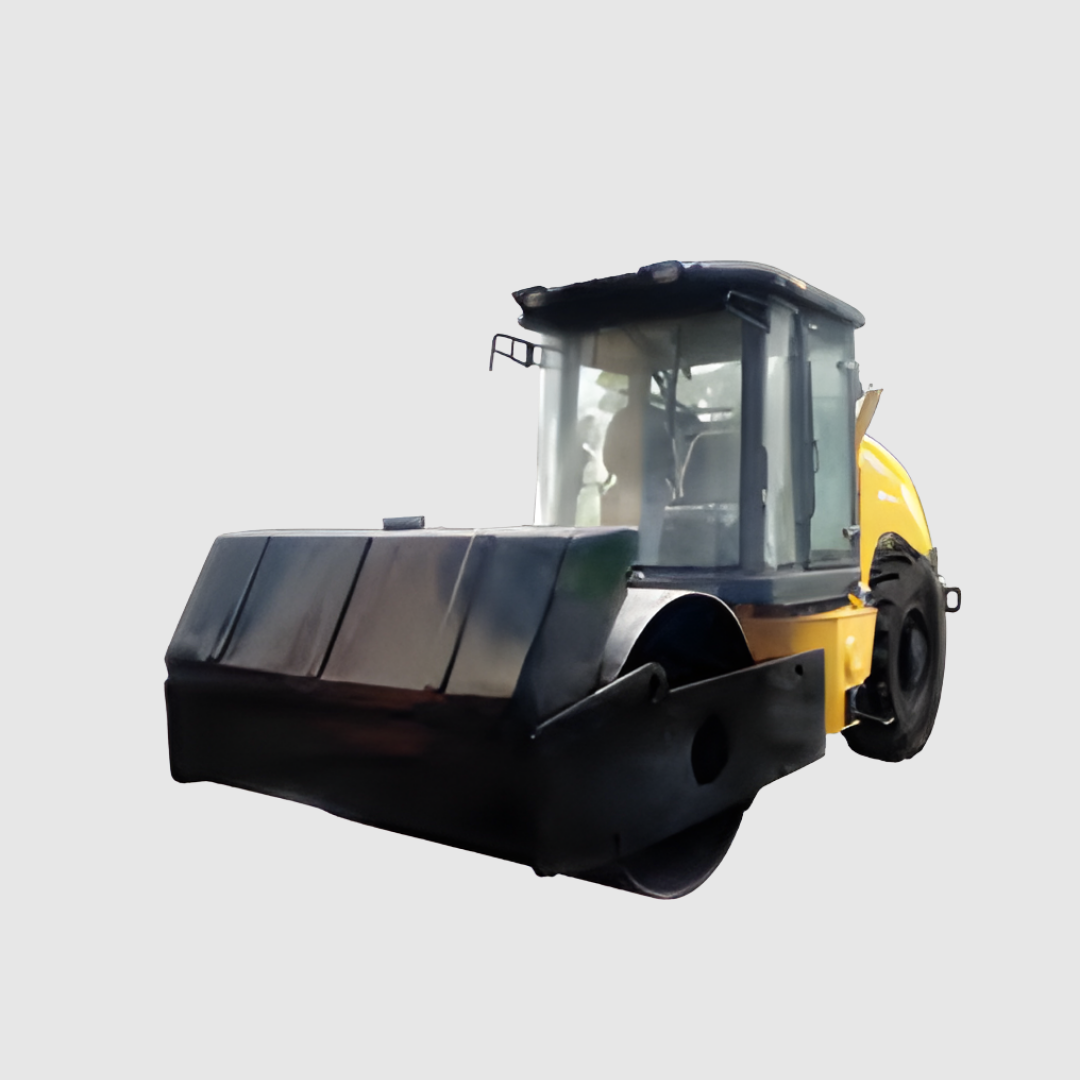

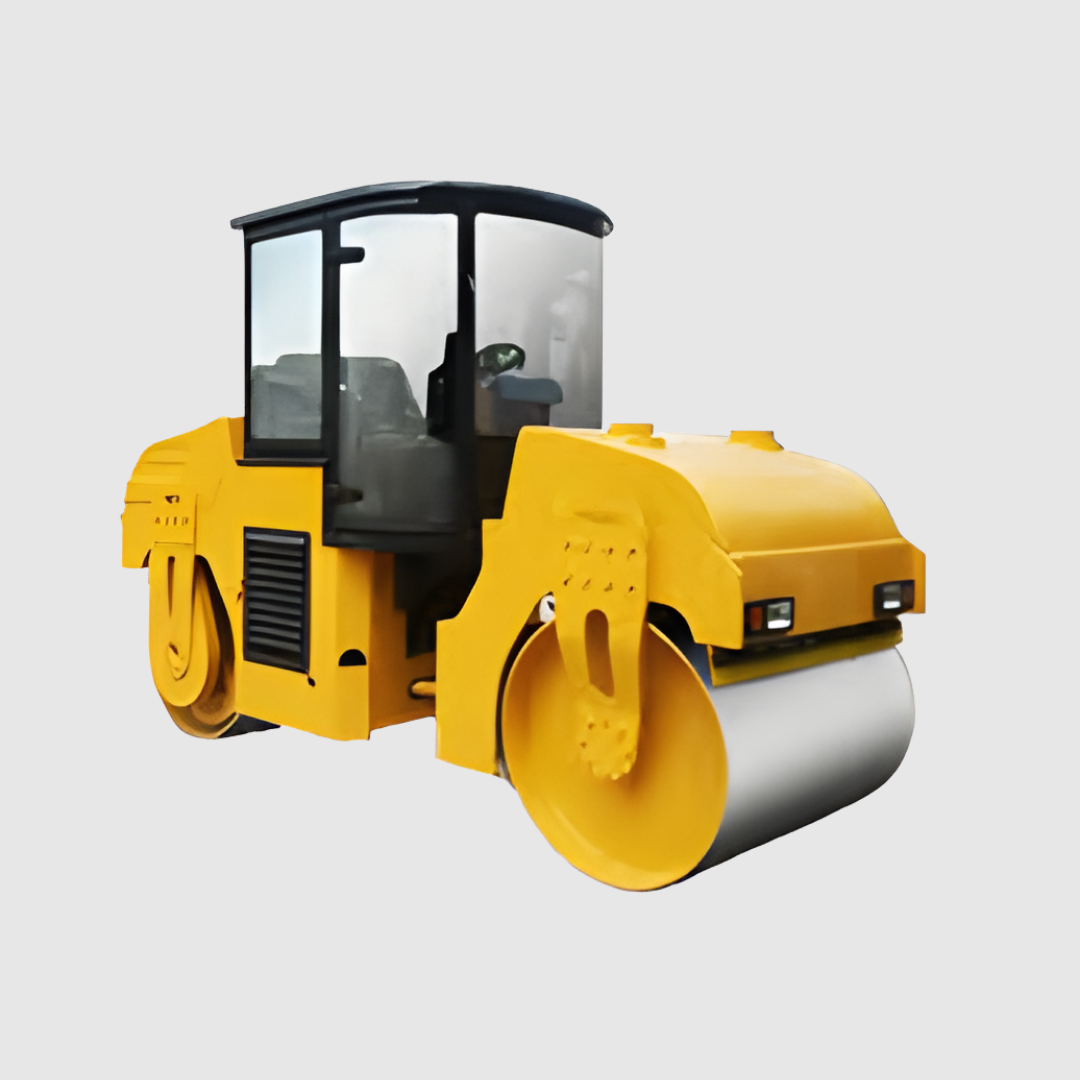

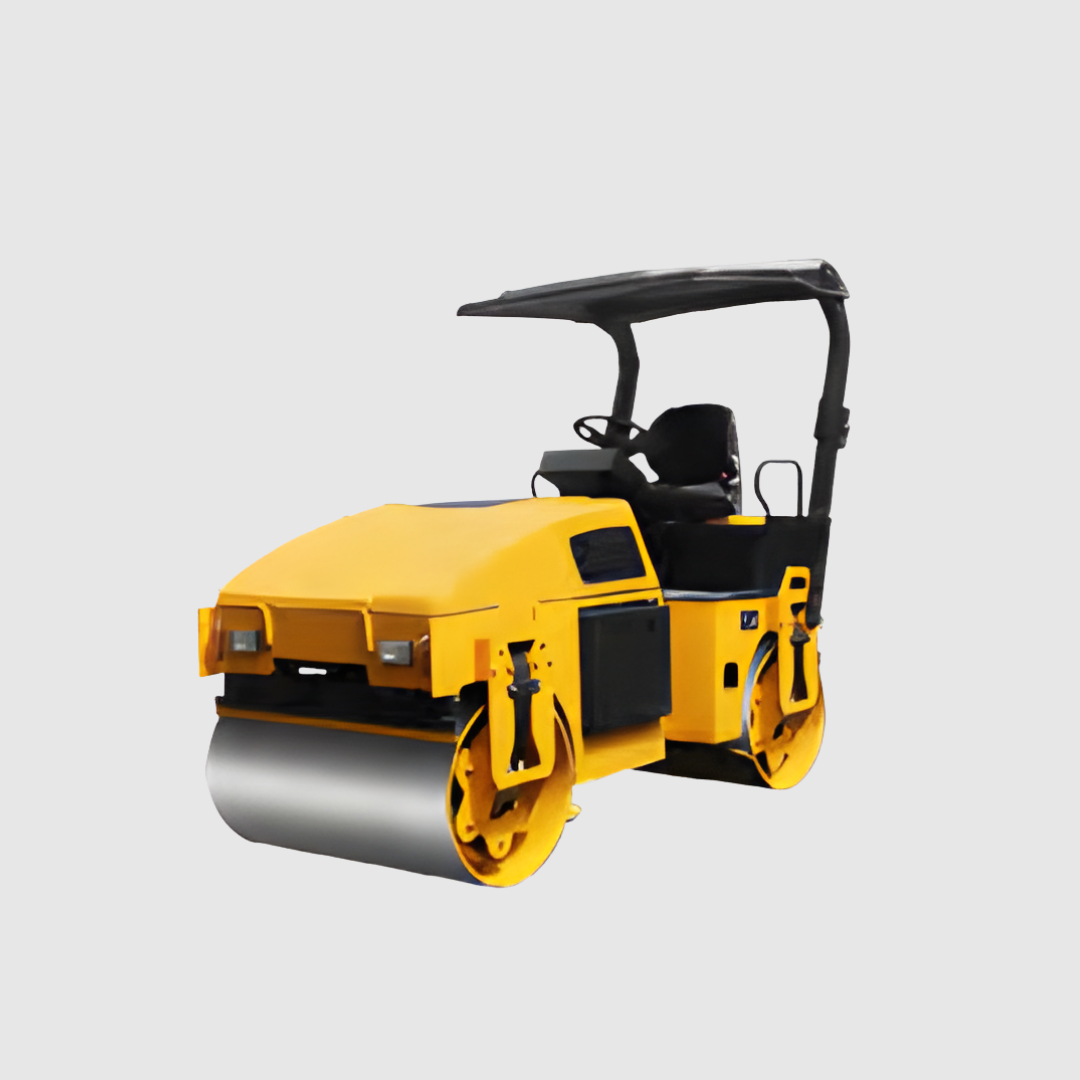

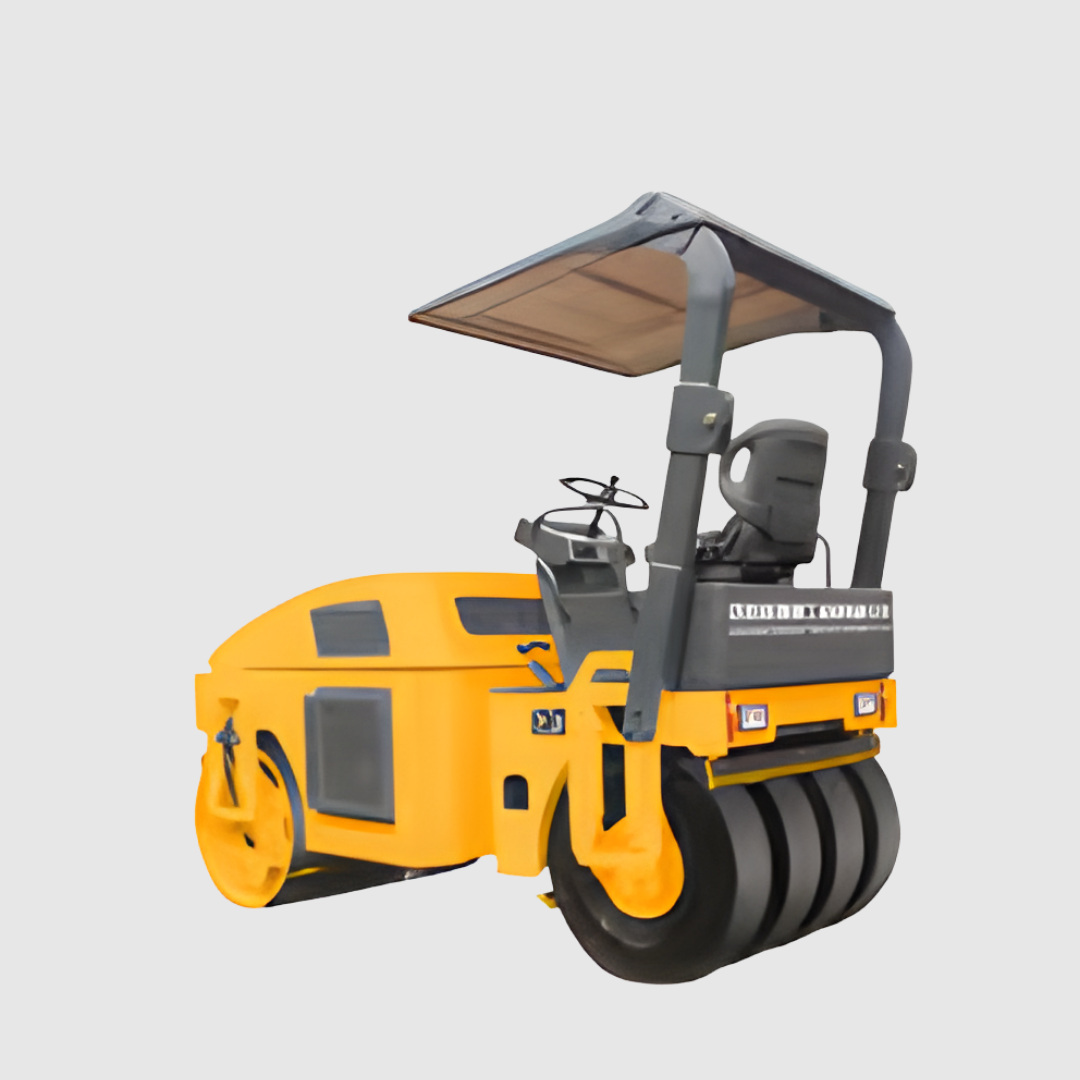

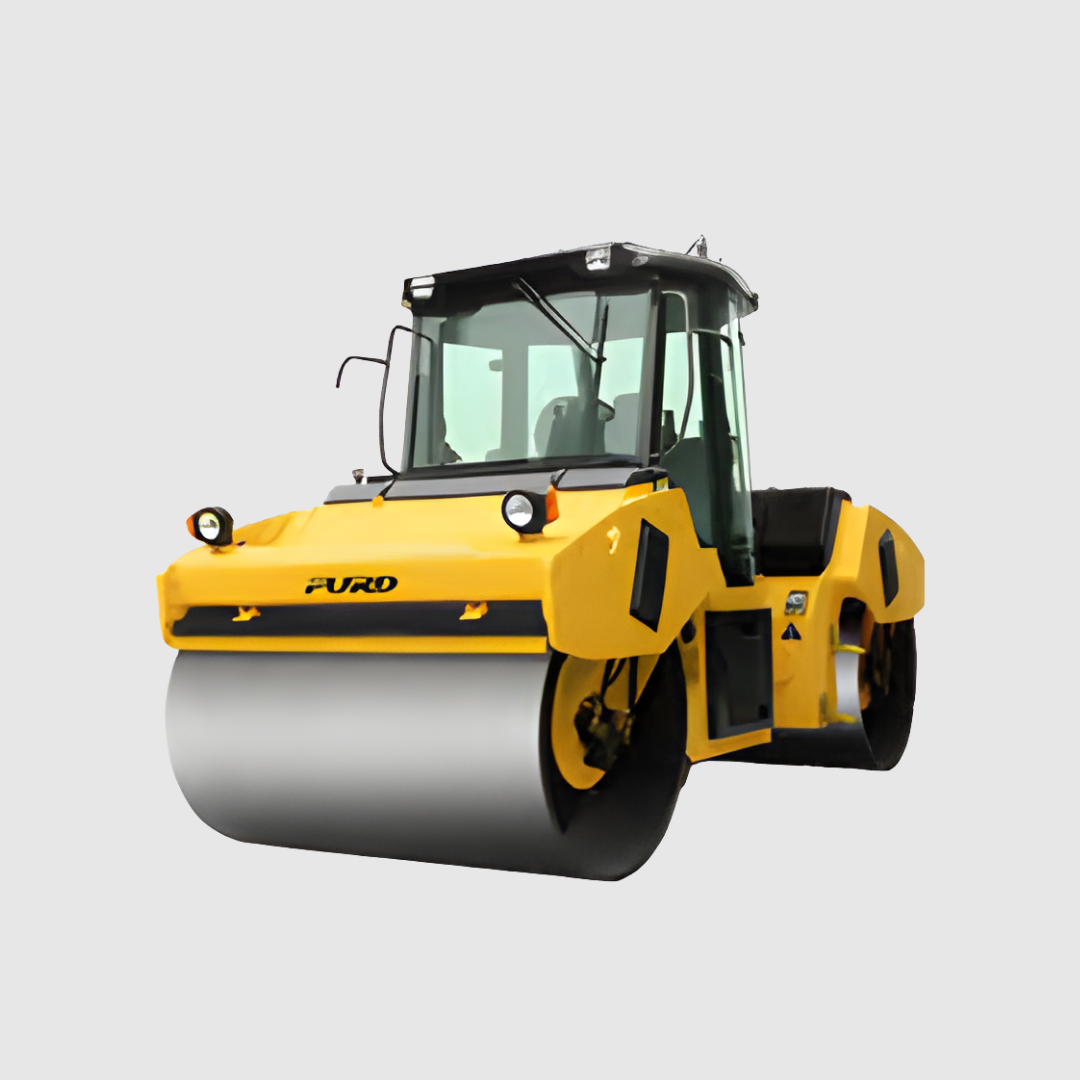

Technical Data	FYL203	FYL204	FYL203P	FYL206	FYL208	FYLS208H
Brand
Max. Travel Speed	±12 km/h	±12 km/h	±12 km/h	±7 km/h	±10 km/h	±10 km/h
Gradeability	30%	32%	25%	20%	40%	25%
Static Linear Load	136 / 136 N/cm	136 / 180 N/cm	150 / 150 N/cm	232.4 N/cm	231 N/cm	230 N/cm
Amplitude	0.5 / 0.5 mm	0.5 mm	0.5 / 0.5 mm		0.34 - 0.67 mm	0.4 mm
Vibration Frequency	50 Hz	50 Hz	50 Hz	46 Hz	45 - 50 Hz	43 Hz
Centrifugal Force	2 x 30 kN	30 kn	2 x 30 kn	55 kn	69 - 90 kn	70 kn
Steel Drum Width	1250 mm	1250 mm	1300 mm	1320 mm	1730 mm	1700 mm
Steel Drum Diameter	700 mm	700 mm	700 mm	950 mm	1150 mm
Wheelbase	2010 mm	2010 mm	2010 mm	2	2	3
Wheel Type	Double Steel Drum	Steel Drum & Rubber Tire	Double Steel Drum	Steel Drum	Steel Drum	Steel Drum & Rubber Tire
No. of Tire		4 x (7.50-15)				2
Drive Type	Hydraulic Variable Transmission	Hydraulic Variable Transmission	Hydraulic Variable Transmission	Hydraulic Variable Transmission	Hydraulic Variable Transmission	Hydraulic Variable Transmission
Starting Mode	Electric	Electric	Electric	Electric	Electric	Electric
Working Weight	3300 kg	3000 kg	4000 kg	6000 kg	8000 kg	8000 kg
Overall Dimension	2760 x 1400 x 2520 mm	2760 x 1400 x 2580 mm	2760 x 1400 x 2520 mm	3690 × 1600× 2700 mm	4558 x 1840 x 2674 mm	5030 x 1880 x 2570 mm
Engine Type	Water cooled, 4-stroke	Water cooled, 4-stroke	Water cooled, 4-stroke	Water cooled, 4-stroke	Water cooled, 4-stroke	Water cooled, 4-stroke
Engine Model	Changchai Diesel ZN390B	Changchai Diesel ZN390B	Changchai Diesel ZN390B	Xinchai Diesel 4D32T31	Cummins 4BT3.9-C100	Cummins 4BT3.9
Cylinder	3	3	3	4	4	4
Bore x Stroke	90 X 100 mm	90 X 100 mm	90 X 100 mm	98 X 115 mm	102 X 120 mm	102 X 120 mm
Displacement	1.909 L	1.909 L	1.909 L	3.17 L	3.9 L	3.9 L
Rated Power / Speed	35 hp / 2600 rpm	35 hp / 2600 rpm	35 hp / 2600 rpm	50 hp / 2200 rpm	100 hp / 2400 rpm	100 hp / 2400 rpm
Water Tank Capacity	200 Liters	200 Liters	200 Liters	435 Liters	2 x 400 Liters	450 Liters

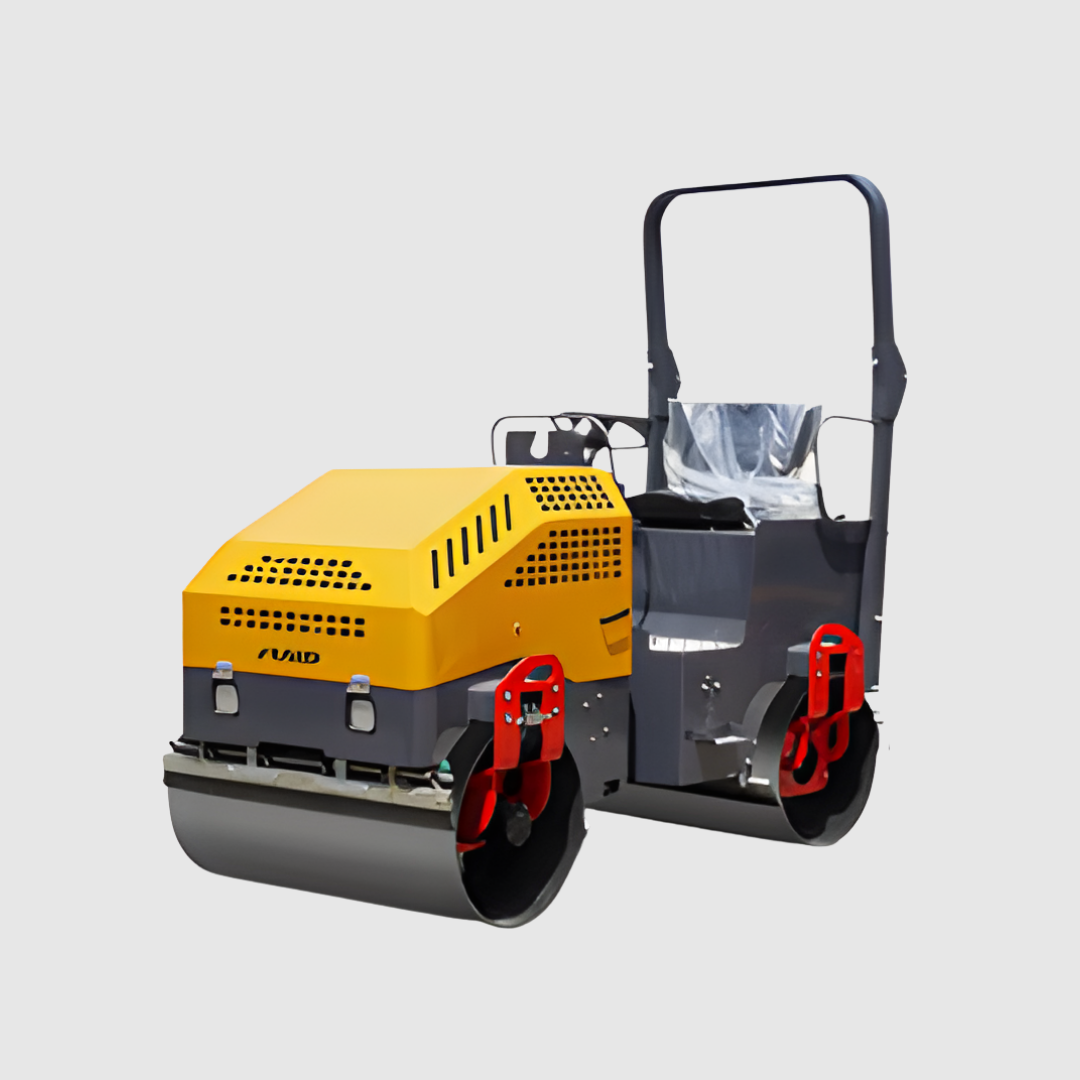

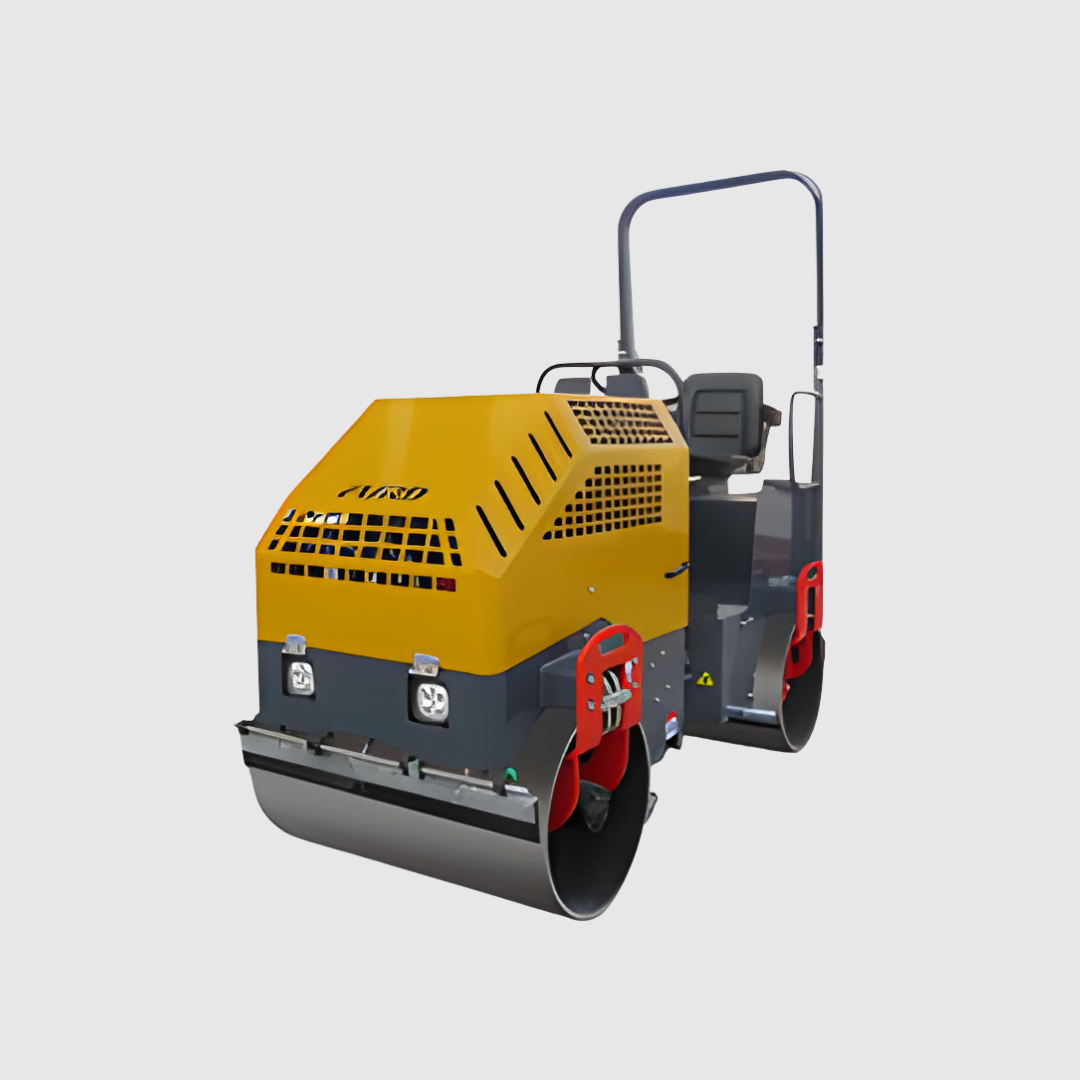

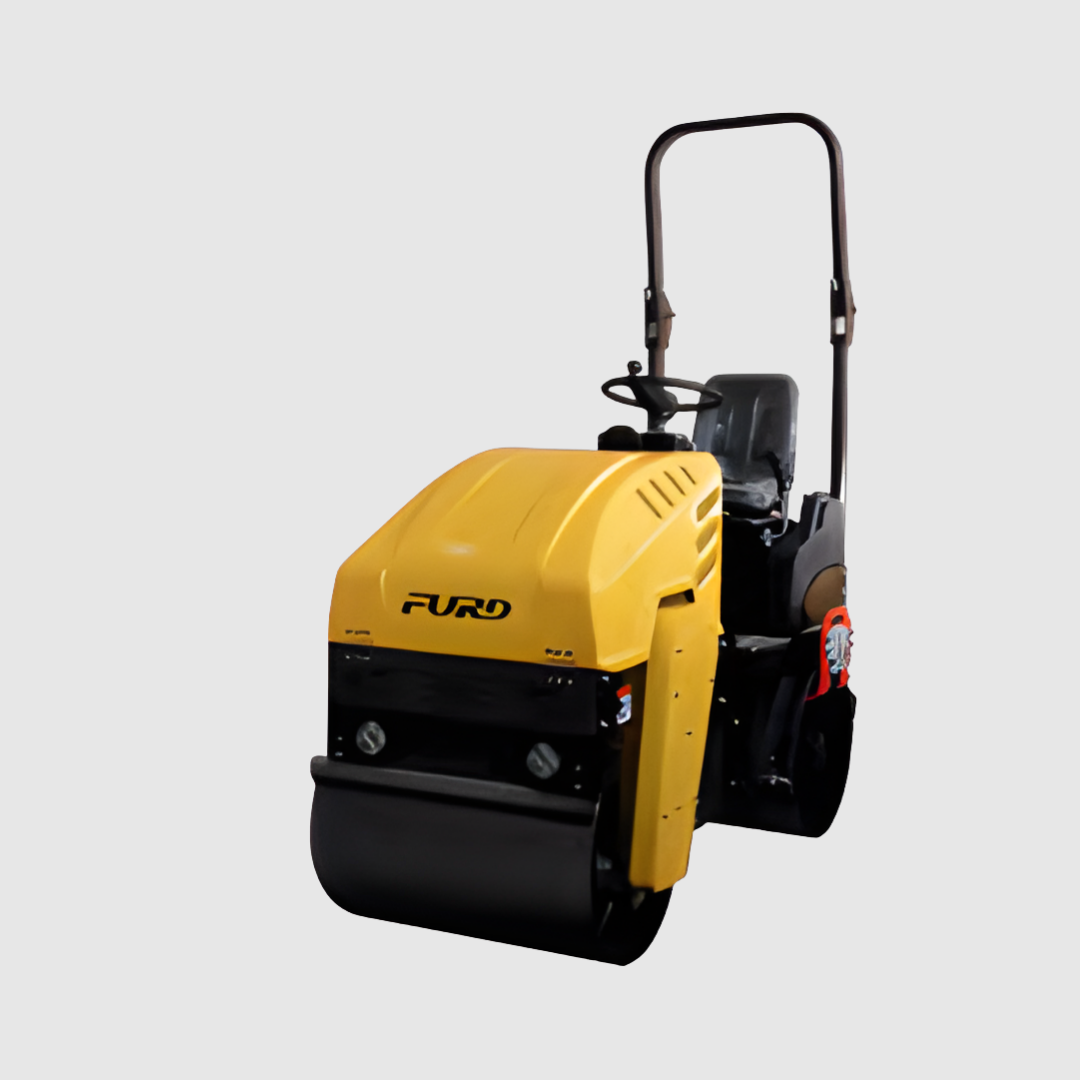

Technical Data	FYL208	FYLS208H	FYL880	FYL900CC	FYL900CC
Brand
Max. Travel Speed	5 km/h	8 km/h	6 km/h	6 km/h	12 km/h
Gradeability	30% / ≤15o	30% / ≤15o	40%	40%	30% - 40%
Drive Type	Hydraulic Transmission	Hydraulic Transmission	Hydraulic Transmission	Hydraulic Transmission	Hydraulic Transmission
Vibration Control	Electro Clutch	Hydraulic Vibration	Hydraulic Vibration	Hydraulic Vibration
Vibration Frequency	70 Hz	65 Hz	60 Hz	60 Hz	60 Hz
Exciting Force	28 kN	30 kN	30 kN	30 kN	2 X 30 kN
Amplitude	0.6 mm	0.6 mm	0.5 mm	0.5 mm	0.5 mm
Static Linear Load	20/50 N/cm	55/70 N/cm	100/90 N/cm	98/106 N/cm	125/115 N/cm
Water Tank	60 Liters	100 Liters	130 Liters	130 Liters	200 Liters
Hydraulic Oil Tank	19 Liters	60 Liters	64 Liters	65 Liters	48 Liters
Engine Model	Diesel	Diesel Changfa CF13	Diesel Changfa	Diesel Changfa	Diesel Changfa
Engine Power	9 hp, 6.7 kW	12 hp, 8.9 kW	34.5 hp, 25.8 kW	34.5 hp, 25.8 kW	34.5 hp, 25.8 kW
Starting Mode	Electric	Electric	Electric	Electric	Electric
Wheel Size Front	540 x 740 mm	560 x 900 mm	560 x 1000 mm	620 x 1200 mm	700 x 1200 mm
Wheel Size Rear	540 x 800 mm	560 x 900 mm	560 x 1000 mm	620 x 1200 mm	700 x 1200 mm
Weight	1000 kg	1500 kg	1800 kg	2500 kg	2900 kg
Package Size	2100 x 1000 x 1650 mm	2300 x 1170 x 1800 mm	2300 x 1090 x 2320 mm	2600 x 1275 x 2480 mm	2800 x 1515 x 2050 mm
